Below are some screenshots from the EngineCheck Pro
software in use:
Fault code and Freeze Frame data display
Read engine fault codes from the car,
along with the freeze-frame data associated
with them (snapshot of engine sensor values). Clear the fault
codes (to switch
off the MIL/Check Engine light) and print customer reports.

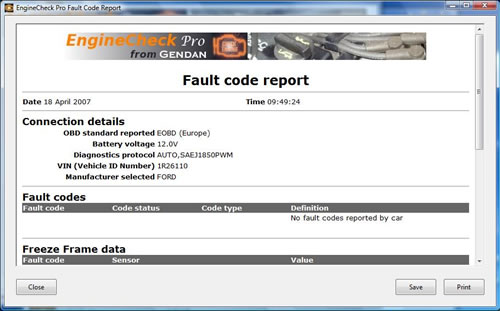

Print fault code reports for customers Example of fault code report for customers
- reports can be printed or saved for later review.

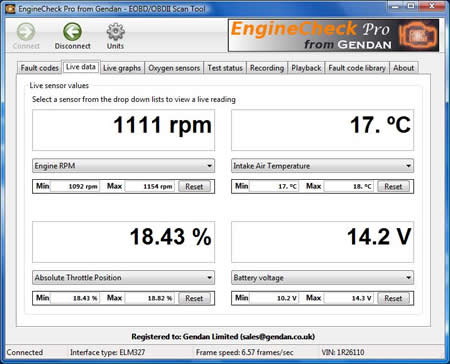

View live engine information View live engine sensor data in
numeric form. Minimum and maximum values are also shown
to help with analysis of data.
Graph live engine information View live engine sensor data in graphical
form. Minimum, maximum and average values
are also displayed to help with analysis of data.

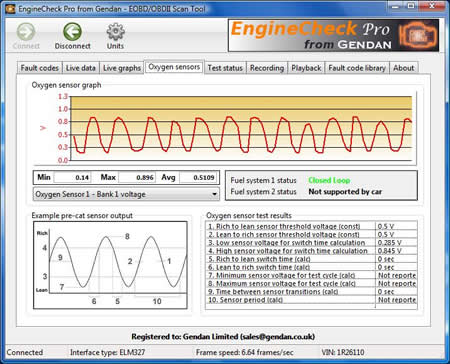

View oxygen sensor test results and live
readings View live Oxygen Sensor readings and
their test results. Fuel System status is shown
to help indicate whether system faults are present and whether
the car is relying on
Oxygen Sensor output.

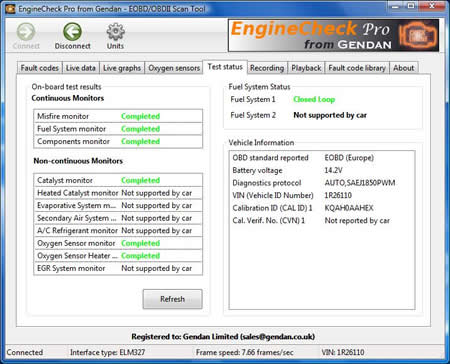

View on-board test and fuel system status Vehicle test status information and car
technical information,
including VIN, CAL and CVN readings.

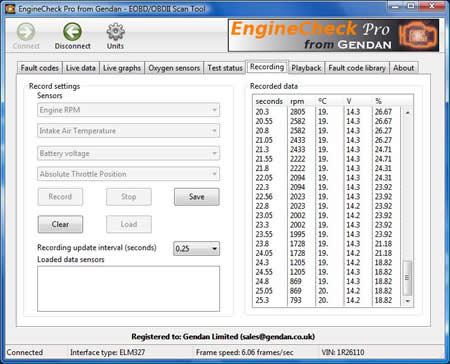

Record live sensor values and save to
file Record data from sensors and view either
on the in-built playback graphs or export
to a file to read in other applications.

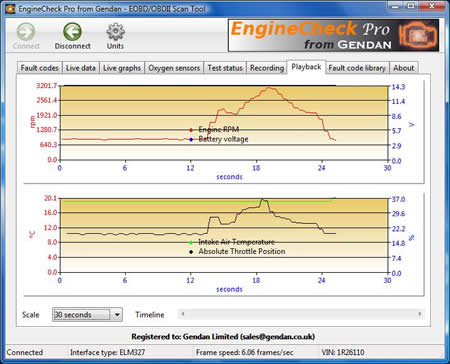

Review recorded sensor values in graph
form In-built viewer for recorded data with
adjustable time scale.

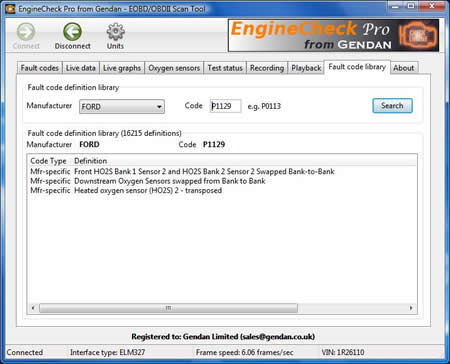

Built-in fault code definition library
of over 16,000 codes Fault code library providing direct lookup
of over 16,000 code definitions.
